Description

Bronchoscope

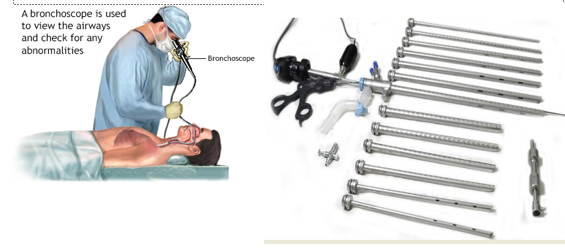

A Rigid Bronchoscope:-  The Rigid Bronchoscope is a hollow metal tube with  a light at its end. It is used mainly for removing foreign substances , investigating the source of massive hemoptysis or performing  endo branchial surgical procedures. Rigid broncho scopy is performed in the operating room , not at the bedside.

The examination is usually performed under local anesthesia ,but general  anesthesia may ne needed for rigid broncho scopy.

Adult Rigid Bronchoscope

A.Universal adaptor connectable to various size bronchial and tracheal barrels, containing one lateral rotatable port for anesthesia ventilator & other fixed port for instrumentation.

• Metallic caps set: 1. Obturator 2. Single Instrumentation 3. Double Instrumentation 4. Oxygen jet centilaion
• Silicon caps set
• Broncheal barrel set Containing 7 nos. with beveled distal end and ventilator tubes of size 7.0/ 8.0/ 10.0/ 12.0/ 13.0/ 14.0mm and length 35cm.
• Tracheal barrels set containing 6 nos non- ventilating tubes with beveled tip of sizes 7.0/ 8.0/ 10.0/ 12.0/ 13.0/ 14.0/ mm and length 25cm.
• Rigid Endoscope( Telescope) OD 5.0 MM, Length 490MM, DOV 0. deg
• Standard Accessories:

1.Suction Cannula

2. Optional Bridge
3. Optional grasping forceps compatible with optymed 5mm, 49 cm Hopkins telescope

4. Alligator grasping forceps (rigid with metallic/ insulated black handle with cautery plug OD 3.0 mm and 2.0mm each, working length
5. Cup biopsy forceps (rigid) with rotatable metallic/ insulated black handle with cautery plug OD 3.0 mm and 2.0 mm each working length 60cm.

6.Carrying case

Paediatric Bronchoscope

The rigid bronchoscope is an excellent tool for relieving large airway obstructions. It can be used to resects lesions or endo- broncheal tumors. Dilatation of airway, removal of foreign bodies, laser therapy, crayo therapy and APC. It Is also helpful in placement of silicone stents.

Specifications

Optymed rigid Bronchoscope comes with a universal base and 11 tubes of different size in two lengths: ie shorter as tracheal and longer as bronchial tubes. All are engraved with metric scales.
The universal base is having one axial port for rigid endoscope and two lateral ports: One for instrumentations and other for ventilator. It is equipped with anairtight auto-lock system for tracheal and bronchial tubes.
Six longer ventilating bronchial tubes of different sizes: 7mm, 8mm, 10mm, 12mm, 13mm and 14mm
Four metallic caps: 1) obturator 2) Single Instrumentation 3) Double instrument 4). Jet ventilation.
Set of Silicone caps
Rigid Endoscope(Telescope) of length 49 cm, dia. 5 mm, angle of view 0 deg.
Option Grasping forceps.
#3mm, 60 cm semi-rigid cautery enabled biopsy forceps and grasping forceps # 1.5 mm, semi-rigid cautery enabled biopsy forceps and grasping forceps.
