Description

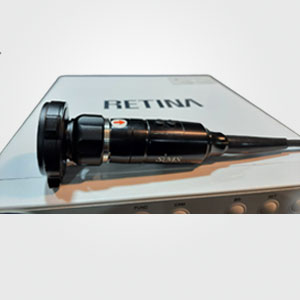

Sims Endo 4000 camera is packed with high resolution Full HD Sony sensor , with 2.8 MP pixel, to produce high quality images and videos, with ultra sharp images with excellent color reproduction.
| Model | Sims Endo 4000 |
|---|---|
| Signal system | Pal/NTSC |
| Image sensor | 1//1.9” Sony CMOS Full HD 1080p sensor |
| Total pixels | 2000 (H) * 1241(V) approx 2.48M pixels |
| Unit cell size | 3.75 um (H) * 3.75 um (V) |
| Scanning frequency | H; 15.625 KHz / V; 50Hz |
| Frame rate | 50 fps @ 1080p |
| Sensor resolution | 2.13 megapixel 1080p |
| Effective pixels | 1945 (H) * 1097 (V) approx .2.13M pixels |
| Focal length of lens | 22mm (ENT) / 28mm.(Laparoscopy) |
| Gain control (AGC) | 0-10 steps |
| Brightness control | 0-20 steps (adjust according to light surce equipment) |
| Output | 1 HDMI , 1 3G – SDI |
| Input | 1 USB input (upto 128 GB pen drive ) ,1 PC input ( windows ) |
| Recording resolution | 1080p full HD @ 60fps |
| Snapshot resolution | 1920 * 1080 pixels |
| Digital zoom | 1x-10x |
| Recording mode | Via USB pen drive |
| Min . system requirement for PC | OS ; windows 7,8,10 , Ram ; 16GB , Intel i5/i7 , memory ; 512 Gb , Graphics ; 2Gb |
| Sharpness | Sharpness |
| Color | 0-10 |
| White balance | PUSH LOCK |
| Camera cable length | 3 meters ultra soft silicon cable . |
| HDMI cable length | 2 meters ultra slim , DVI |
| Power cable length | 2 meter |
| Supported endoscope | Rigid endoscopes / flexible endoscope (optional) |
| Connector | Push pull typ |
| Power voltage | 12VDC (camera head) , AC 110V – 240V |
| Power consumption | Max 2W / 170mA |
| Max 2W / 170mA | 275 (L) x 220(W) x 80(H) mm . (control unit ) , Q38mm x 97.7mm ( Camera Head) |
| Weight (Net) | Approx 2225g . (control unit) , approx 150g . (camera Head without cable and lens ) |
